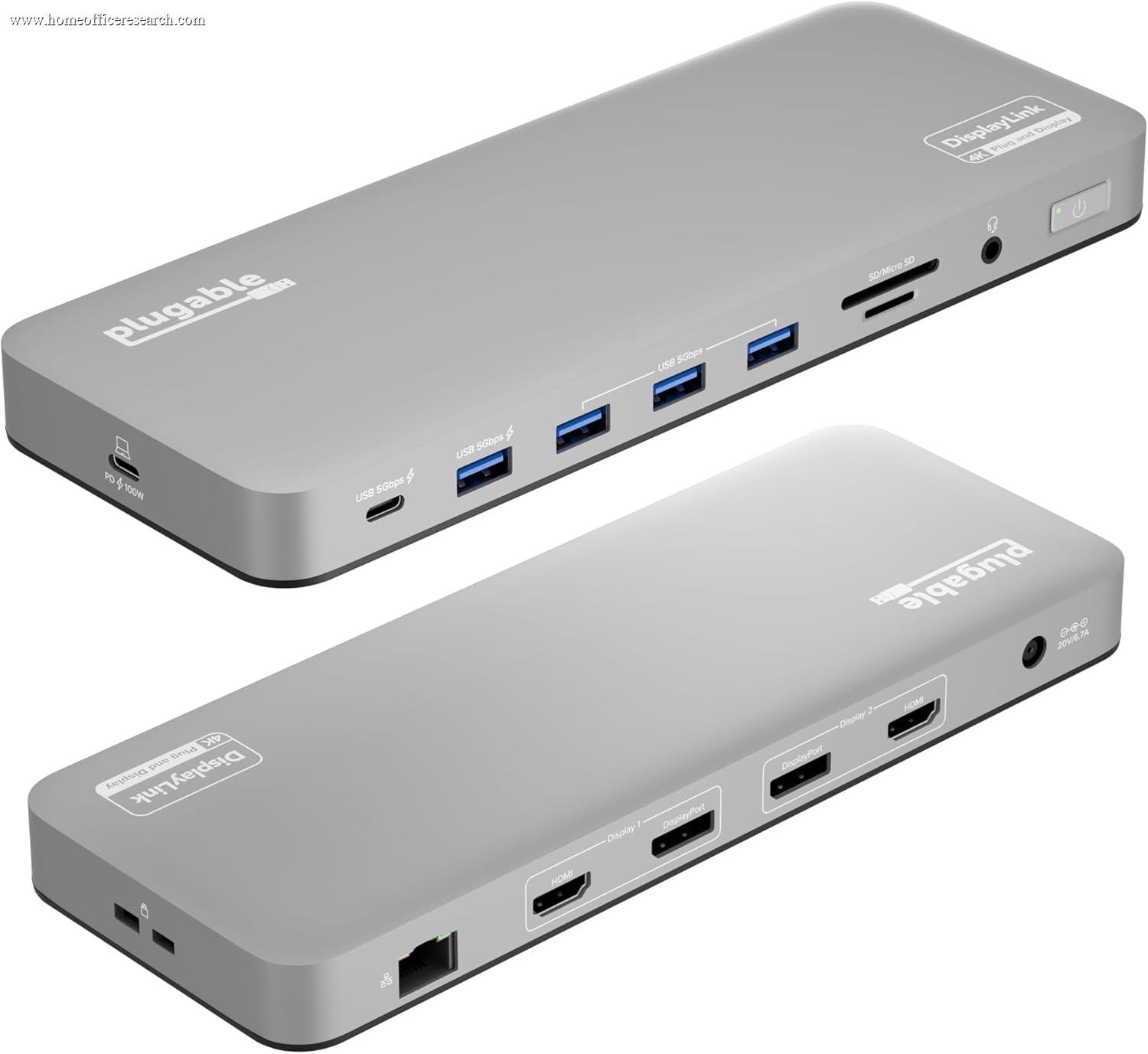

UD-6950PDH Dual 4K DisplayLink Dock

The UD-6950PDH connects to the host laptop via USB-C at USB 3.2 Gen 2 (10Gbps) — a meaningful distinction from the Thunderbolt 4 docks that occupy the top half of our guide. That 10Gbps ceiling is shared between data transfer and the DisplayLink video compression stream for up to two 4K displays, which means that heavy simultaneous use — offloading a large external SSD while streaming compressed 4K video across both monitors — will contend for available bandwidth in ways that Thunderbolt docks, with their 40Gbps headroom, do not experience. For typical office workloads — browser, documents, video calls, light file transfers — the 10Gbps envelope is rarely saturated, but users who regularly move large files between USB-attached storage and their laptop should be aware of this architectural constraint.

The USB-C host connection carries two advantages that the Thunderbolt requirement does not: it works on essentially any laptop made in the last six years, and it eliminates the compatibility lottery that some Thunderbolt 3 laptops face with TB4 docks. The UD-6950PDH is compatible with Windows laptops, MacBook Air and Pro models, Surface devices, and USB-C-equipped Chromebooks — provided DisplayLink Manager software is installed. Plugable provides clear compatibility documentation and actively maintains driver support across operating system versions, which is notable given how often DisplayLink compatibility with macOS updates has historically required driver patches within weeks of an OS release.

Data throughput via the four USB-A 3.0 ports and single USB-C data port is limited to USB 3.2 Gen 1 (5Gbps) — sufficient for keyboards, mice, webcams, and moderate-speed external drives, but slower than the 10Gbps USB-A ports found on the CalDigit TS4. The 1GbE Ethernet port is adequate for most home broadband connections but represents a gap relative to the 2.5GbE implementations on the TB4 docks at the top of our rankings. For users whose network infrastructure exceeds gigabit speeds, the Ethernet port is the dock’s most meaningful connectivity limitation.

Bottom line on connectivity: The USB-C backbone makes this dock universally compatible — its greatest strength — but the 10Gbps shared bandwidth and 1GbE Ethernet are real trade-offs relative to Thunderbolt alternatives. Best for multi-monitor setups where display output, not raw data throughput, is the primary demand.

This is the UD-6950PDH’s defining capability — and it is genuinely exceptional for a non-Thunderbolt dock. Four physical display outputs (two HDMI 2.0 and two DisplayPort 1.4) can drive any two of the four simultaneously at 4K@60Hz, giving users the flexibility to connect whatever monitor combination their desk requires without adapter juggling. Both HDMI ports are full 2.0, supporting 4K at 60Hz natively, which eliminates the 4K@30Hz limitation that plagues older DisplayLink implementations and USB-A-connected docks. The flexibility to choose any two of four outputs means this dock accommodates mixed monitor environments — one HDMI display and one DisplayPort display, for example — without compromise.

The enabling technology is DisplayLink, developed by Synaptics, which compresses the video signal in software on the host CPU, transmits it over the USB connection, and decompresses it via a dedicated ASIC in the dock. The practical implications deserve honest discussion: DisplayLink requires driver installation (DisplayLink Manager, available for Windows, macOS, and ChromeOS), consumes CPU resources for video compression (typically 3–8% on a modern CPU under standard office use), and on macOS requires Screen Recording permission — a privacy permission that some users find objectionable. DisplayLink is also incompatible with HDCP-protected content, which means that streaming services enforcing HDCP (Netflix, Disney+, Apple TV+) may display black screens or error messages on DisplayLink-connected monitors.

The macOS story has improved substantially since macOS 13.4, which resolved a longstanding issue where DisplayLink’s screen recording requirement triggered repeated system permission prompts. Current versions of DisplayLink Manager handle the macOS permission flow gracefully, and Plugable’s documentation clearly explains the setup process. For base M1, M2, and M3 MacBook Air models — which Apple’s hardware limits to a single external display — DisplayLink is the only software path to dual external monitors without an eGPU. No Thunderbolt dock resolves this limitation; it is a silicon-level constraint that only DisplayLink technology circumvents. This specific use case, where the UD-6950PDH has no meaningful competition, accounts for its high display score despite the driver and HDCP caveats.

Bottom line on display capability: Dual 4K@60Hz from any USB-C laptop is the UD-6950PDH’s singular achievement. The DisplayLink driver requirement, CPU overhead, and HDCP limitation are real trade-offs that users should understand before purchasing. For MacBook Air dual-monitor setups specifically, there is no alternative that works as well.

The UD-6950PDH delivers 100W of USB-C Power Delivery to the connected laptop — a solid figure that covers all MacBook Air configurations, most 14-inch MacBook Pro models, and the majority of Windows ultrabooks and business laptops. The 100W ceiling sits below the 140W that Apple’s MagSafe adapter provides for the 16-inch MacBook Pro M3 Max, meaning that under sustained maximum compute load the laptop may charge slowly or maintain rather than gain battery level. For typical office workloads, 100W is sufficient to charge from depleted to full during a normal workday without issue.

The power delivery implementation is straightforward — pass-through from the host to the laptop over the same USB-C cable that carries data and the DisplayLink video stream. This single-cable simplicity is a genuine ergonomic advantage: one cable connects the dock to the laptop and delivers display output, USB peripherals, Ethernet, audio, and charging simultaneously. The competing Thunderbolt 4 docks at the top of our guide deliver 96–98W in most cases, so the UD-6950PDH’s 100W is actually modestly ahead of several Thunderbolt alternatives, though the gap is not significant enough to be a meaningful differentiator in practice.

One consideration for MacBook Air users: the M2 and M3 MacBook Air models have a maximum input of 67W for USB-C charging, and the UD-6950PDH will charge them at full speed regardless of its 100W output capability. The excess headroom is simply unused for these lower-wattage laptops, which is not a problem — the dock charges them as fast as the hardware allows. For Windows gaming laptops and high-TDP professional workstations that draw more than 100W under full load, a supplemental power adapter will be needed alongside the dock.

Bottom line on power delivery: 100W is adequate for the vast majority of laptop configurations, and single-cable simplicity is a genuine usability advantage. The limitation is for high-TDP 16-inch laptops under sustained load — a niche that the CalDigit TS4’s 98W sustained delivery also partially constrains.

The UD-6950PDH provides a practical home office peripheral set: four USB-A 3.0 ports, one USB-C data port, 1GbE Ethernet, a 3.5mm combo audio jack, four display outputs, and 100W PD — all in a compact horizontal footprint designed to sit unobtrusively on a desk. The port count is sufficient for keyboard, mouse, webcam, and a USB peripheral simultaneously, which covers the majority of home office configurations. Where it lags behind the Thunderbolt docks in our guide is in port variety: no SD card reader, no separate audio in and audio out jacks (the combo jack forces an adapter for users who need independent microphone and speaker connections), and no USB-A port rated faster than USB 3.2 Gen 1 (5Gbps).

The physical design prioritizes dual-monitor users specifically. The four display outputs are arranged on the rear face with HDMI and DisplayPort ports clearly labeled, making initial monitor cable routing straightforward. The USB-A and USB-C data ports are on the rear as well, which is appropriate for permanent peripheral connections but means that users who frequently plug and unplug USB devices must reach behind the unit. A small number of Plugable’s dock models feature front-panel USB ports for this reason, and the omission on the UD-6950PDH is a usability gap relative to docks like the Kensington SD5700T that provide front-panel convenience access.

Plugable’s approach to documentation and compatibility disclosure is genuinely industry-leading. The product page explicitly lists known limitations — DisplayLink HDCP restrictions, macOS Screen Recording permission requirements, shared bandwidth implications, and specific laptop models that require firmware updates for full compatibility. This transparency is rare in the docking station category, where many manufacturers bury compatibility caveats in small-print footnotes or omit them entirely. For users making an informed purchasing decision, Plugable’s documentation reduces the risk of discovering a compatibility issue after unboxing.

Bottom line on port mix: A practical but not exceptional port selection — sufficient for a complete home office peripheral set without an SD reader, front-panel access ports, or split audio jacks. Plugable’s documentation quality and compatibility transparency partially compensate for what the port list lacks.

Within the DisplayLink dual-4K dock category, the UD-6950PDH is competitively positioned. Dual 4K DisplayLink docks represent a specific market segment with a narrower set of alternatives than the broader Thunderbolt dock market, and Plugable’s combination of four display outputs, 100W PD, and transparent compatibility documentation distinguishes it from lower-cost DisplayLink options that deliver fewer ports or weaker power delivery. For users who genuinely need DisplayLink dual-monitor support — primarily MacBook Air owners or users with non-Thunderbolt laptops — the cost is well justified by the specific problem it solves.

The honest framing for value comparison is: the UD-6950PDH costs less than the Thunderbolt 4 docks in our guide that deliver higher bandwidth and fewer driver requirements, but those docks cannot provide dual external monitors on a MacBook Air or non-Thunderbolt laptop. The comparison is therefore not simply a price-per-feature calculation — it is a capability question. If your laptop supports dual external displays over Thunderbolt, a TB4 dock is a better investment at similar cost. If it does not, the UD-6950PDH provides a capability that no Thunderbolt dock in our guide can replicate, making its value proposition compelling regardless of the price comparison.

Bottom line on value: Strong value within the DisplayLink category, especially for MacBook Air and non-Thunderbolt laptop users where dual 4K output is otherwise unavailable. Users with Thunderbolt-capable hardware should evaluate the CalDigit TS4 or Kensington SD5700T before defaulting to DisplayLink.

The UD-6950PDH uses a matte black plastic enclosure that is solid and well-assembled without aspiring to the premium aluminum construction of CalDigit’s or Kensington’s docks. The chassis has no perceptible flex, ports are firmly seated with no lateral play, and the overall build quality reflects Plugable’s positioning as a reliable mid-market brand rather than a premium one. The plastic construction does run warmer than aluminum under sustained load — DisplayLink processing generates meaningful heat at the dock’s internal ASIC — but the operating temperature remains within normal parameters, and Plugable’s thermal design prevents the unit from becoming uncomfortably hot to the touch.

The form factor is a compact horizontal rectangle designed to sit flat on a desk surface. There is no vertical orientation option or mounting hardware, which keeps the footprint predictable. The included USB-C cable is Plugable’s own braided variant, appropriately long for desktop use, and rated for the full USB 3.2 Gen 2 speeds and 100W PD that the dock supports. The power brick is external — a compact adapter rather than an integrated cable-style design — which is standard for docks at this power level. Plugable provides a 2-year warranty and operates a US-based support team, which is a meaningful differentiator for a brand competing primarily on Amazon, where post-purchase support from some competing manufacturers is difficult to access.

Bottom line on build and design: Solid, no-frills plastic construction that does the job without pretending to be premium. The 2-year warranty and accessible US support give it better long-term ownership confidence than generic DisplayLink alternatives, and build quality is meaningfully above the entry-level DisplayLink market.
